| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | MHC AP |
| หมายเลขรุ่น: | 61319122509 |
| จำนวนสั่งซื้อขั้นต่ำ: | ต่อรองได้ |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | บรรจุเป็นกลางหรือตามความต้องการ |
| เวลาการส่งมอบ: | 3 วันทำการหลังจากได้รับการชำระเงิน |
| เงื่อนไขการชำระเงิน: | T/T, เวสเทิร์นยูเนี่ยน, เพย์พาล, |
| สามารถในการผลิต: | 1,000 ชิ้นต่อเดือน |
| เลข OEM: | 61319122509 | ชื่อส่วน: | สปริงนาฬิกา |
|---|---|---|---|
| หมายเลขอื่น ๆ: | 61316928042 | รถที่เหมาะสม: | BMW |
| สภาพ: | ใหม่ 100% | ตัวอย่าง: | มี |

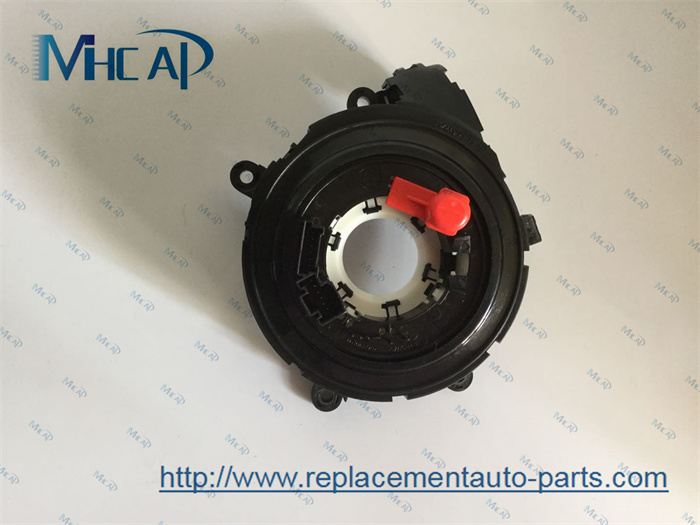

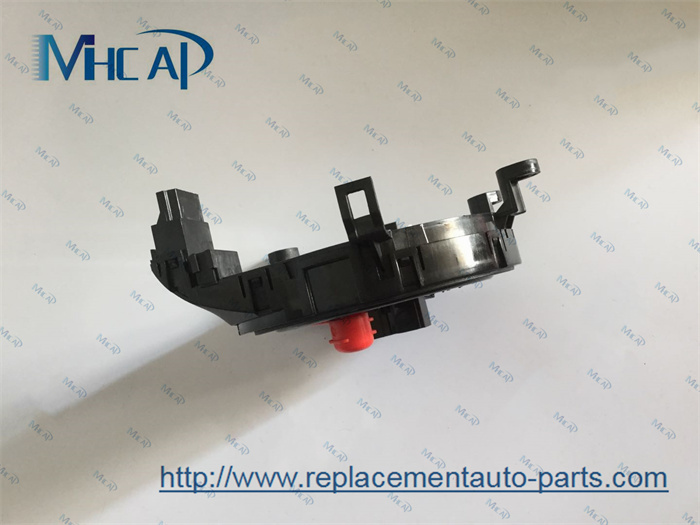

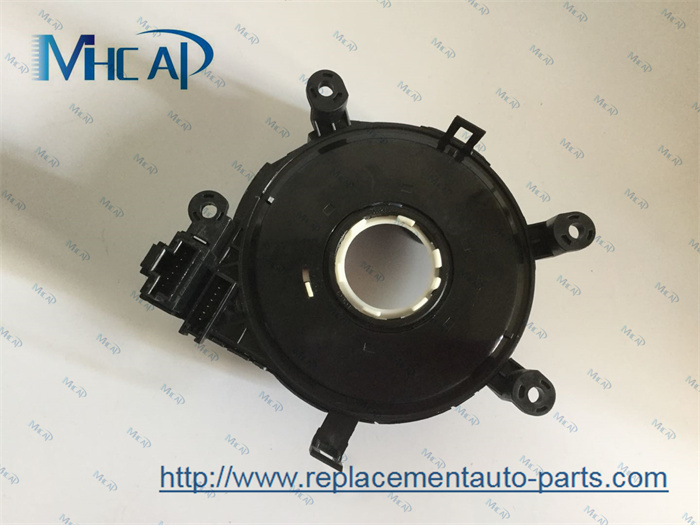

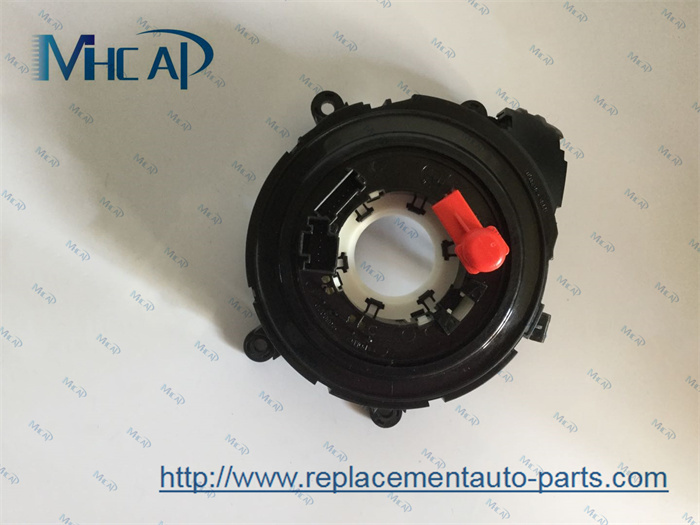

Automotive Air Bag Clock Spring Steerring Coil OEM 61319122509 61316928042 BMW
Specification:
Model Number: 61319122509 61316928042
Part Name: Clock Spring
Suitable car: BMW
Size: Standard Size
Warranty: 12 months
Stocks: Available
Packing: Neutral Packing
Condition: 100% new
Matching car information:
| MODEL | YEAR | ENIGNE | CC | KW | TYPE |
| BMW 1 (E81) 116 d | 2008-2011 | N47 D20 A,N47 D20 C | 1995 | 85 | Hatchback |
| BMW 1 (E81) 116 d | 2011-2011 | N47 D20 A,N47 D20 C | 1995 | 66 | Hatchback |
| BMW 1 (E81) 116 i | 2007-2011 | N45 B16 A | 1596 | 85 | Hatchback |
| BMW 1 (E81) 116 i | 2007-2011 | N43 B16 AA | 1599 | 90 | Hatchback |
| BMW 1 (E81) 116 i | 2008-2011 | N43 B20 A | 1995 | 90 | Hatchback |
| BMW 1 (E81) 118 d | 2006-2011 | N47 D20 A,N47 D20 C | 1995 | 105 | Hatchback |
| BMW 1 (E81) 118 d | 2006-2011 | N47 D20 A,N47 D20 C | 1995 | 100 | Hatchback |
More Popular Product :
What is the clock spring ?
An airbag clock spring is used to connect the steering wheel to other electrical devices such as the airbag safety system, radio volume and station selections, horn and cruise controls. A clock spring can become faulty when wires become worn and break causing a short or open circuit. This can cause the airbag warning light to come on. Horn, radio controls and cruise controls can also stop as well.
What is the Symptoms of a bad clock spring?
Here is a list of some of the most common problems :
Airbag light is on: The airbag or SRS light turning on. A common problem often caused by a defective clock spring. If you scan the airbag system using a diagnostic scanner you may get any of the following errors:
Driver Airbag Squib Circuit High Resistance
Airbag circuit resistance too high
Driver Side Air Bag Circuit High Resistance or Open
Driver squib circuit open!
What is the locations of clock spring?
The clock spring is located in the steering column and is mounted right underneath the steering wheel. The clock spring has wires that connect to the airbag and steering wheel buttons and on the opposite side has an electrical wire harness plugged into it.
How do we confirm that clock spring is in the zero position during transportation and installation?
There are several types of clock springs. Each type has a different way of neutral position. Generally, the label or plastic parts on the clock spring will write it. Generally, it is written that the inner ring of the clock spring is rotated clockwise (or counterclockwise, which is related to the design) to the end, and then how many turns are reversed (2, 2.5, and 3 are possible) to make the plastic The two shell centering symbols are aligned, expressed as a neutral position, which is the zero position you say. Be sure to read the alignment instructions on the clock spring!
