| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | MHC AP |
| หมายเลขรุ่น: | LR009793 |
| จำนวนสั่งซื้อขั้นต่ำ: | ต่อรองได้ |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | การบรรจุที่เป็นกลางหรือตามความต้องการ |
| เวลาการส่งมอบ: | 3 วันทำงานหลังจากได้รับการชำระเงิน |
| เงื่อนไขการชำระเงิน: | T/T, Western Union， Paypal, |
| สามารถในการผลิต: | 1,000pcs ต่อเดือน |
| แบบอย่าง: | LR009793 | ความยาว: | 44 มม |
|---|---|---|---|
| รถที่เหมาะสม: | แลนด์โรเวอร์ | ประเภทผลิตภัณฑ์: | เซ็นเซอร์เพลาข้อเหวี่ยง |
| ตัวอย่าง: | มีอยู่ | การรับประกัน: | 12 เดือน |

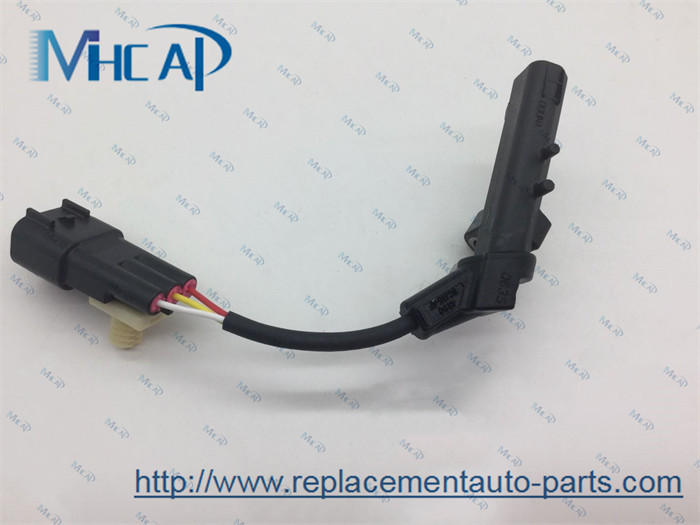

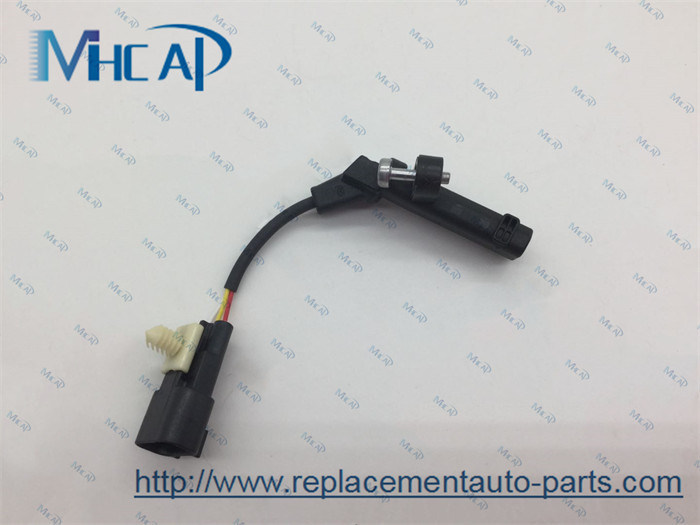

44mm Auto Crankshaft Position Sensor OEM LR009793 LR049872 Land rover
Specification:
Model Number:LR009793 LR049872
Part Name:Sensor part
Used on the following : Land rover
Product type: Crankshaft Position Sensor
Length : 44mm
Warranty: 12 months
Stocks:Available
CAR MATCHING:
| MODEL | YEAR | ENIGNE | CC | KW | TYPE |
| LAND ROVER DISCOVERY III (L319) 2.7 TD 4x4 | 2004-2009 | 276DT(TDV6) | 2720 | 140 | Closed Off-Road Vehicle |
| LAND ROVER DISCOVERY IV (L319) 2.7 TD 4x4 | 2009-2018 | 276DT(TDV6) | 2720 | 140 | Closed Off-Road Vehicle |
| LAND ROVER DISCOVERY IV (L319) 3.0 TD 4x4 | 2009-2018 | 306DT(TDV6) | 2993 | 180 | Closed Off-Road Vehicle |
| LAND ROVER DISCOVERY IV (L319) 3.0 TD 4x4 | 2010-2018 | 306DT(TDV6) | 2993 | 155 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) 3.0 D 4x4 | 2002-2012 | 306D1(M57D30) | 2926 | 130 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) 3.6 D 4x4 | 2006-2012 | 368DT(LION) | 3628 | 200 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) 4.4 D 4x4 | 2010-2012 | 448DT(DITC) | 4367 | 230 | Closed Off-Road Vehicle |
Main Components of a Crankshaft Position Sensor
Casing: Typically made of high-temperature-resistant, flame-retardant engineering plastic (such as PBT or PPS).
Connector: A standard automotive electrical connector used to connect to the vehicle wiring harness.
Magnetic Component: Typically a permanent magnet (such as a neodymium iron boron magnet).
Sensor Chip: The core component, an integrated circuit (IC) that integrates a Hall effect element or magnetoresistive element and signal conditioning circuitry.
Signal Processing Circuit Board: A small PCB that carries the sensor chip and necessary filtering and protection components.
Cable and Seal: Waterproof and dustproof seals or potting compounds.
What is the function of the crankshaft sensor?
The crank sensor can be used in combination with a similar camshaft position sensor to monitor the relationship between the pistons and valves in the engine, which is particularly important in engines with variable valve timing. This method is also used to synchronize a four stroke engine upon starting, allowing the management system to know when to inject the fuel. It is also commonly used as the primary source for the measurement of engine speed in revolutions per minute.
Where is the crankshaft sensor installed?
Common mounting locations include the main crank pulley, the flywheel, the camshaft or on the crankshaft itself. This sensor is one of the two most important sensors in modern-day engines, together with the camshaft position sensor.
We Also Supply Following Goods:
| 1 |  |
48702-60130 | REAR BEAM ARM |
UZJ200 URJ202 |
| 2 | |
48702-60140 | REAR BEAM ARM |
UZJ200 URJ202 |
| 3 | |
48706-60030 | REAR BEAM ARM |
FZJ80 HZJ81 |
| 4 | |
48655-60030 | LOWER ARM | RZJ120 KDN215 |
| 5 | |
48654-60030 | LOWER ARM | RZJ120 KDN215 |
FAQ:
1.How many years have your company dealt in Auto parts?
We have been founded for 15 years now
2.What product are you supplying?
We are currently offering more than 10,000 different auto parts, our main lines are: engine mount, control arm, brake pads, brake disc, brake caliper, bearing , hub bearing, steering rack , tir rod end, rack end, ball joint, and electrical parts: sensor, clock spring, window switch, spark plug, ignition coil, injector, fuel pump an so on.
Contact us
Your inquiry is welcome here.
If you have any questions, please contact us by Contact Person: Miss. Jane
Tel: +8615002030283.We will get back to you once we get your messages.
